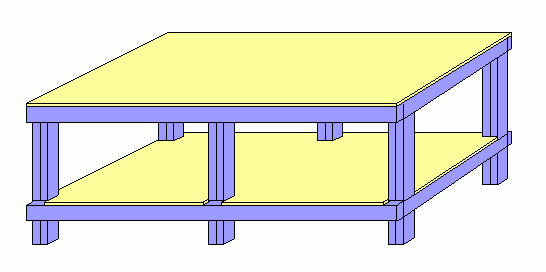

Shop Work Bench Table

These wood working plans include:

The following drawings:

  • A section of the length of the work bench
  • A section of the end of the work table
  • Detail of the work bench legs

The plans have a List of Materials, including the size and number of sheets of MDF, the size and number of the legs and ledgers, the size and quantity of screws and the recommended glue.

The Instructions include the following topics:

The Intro, Constructing the Bents, Assembly and Finishing.
