Cabinets 4: How to Make a Formica Counter Top

I know you can go into the large building supply stores and purchase a bathroom or kitchen cabinet formica counter top with a rolled top with little shaped end caps supplied as well. But, I would rather build my own kitchen cabinet formica counter top and include a bit of personality to it. I'll show you how.

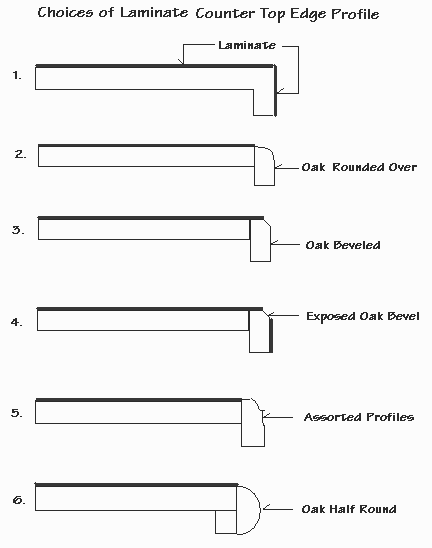

Drawing showing choices of laminate counter top edge profiles, including oak rounded over, oak beveled, exposed oak bevel, assorted profiles and oak half round. On the left I've drawn six different profiles for the edges of your formica counter top, using a combination of formica and oak trim, for example.

Most formica counter top manufacturers today use K-3 particle board which, when exposed to water, from a kitchen sink area, will swell up and crumble away. I can't count the number of times I've seen this happen. Particularly around a kitchen or bathroom sink, I use plywood. Don't buy a sheet of G1S at $40 a piece, but 5/8" D-grade sanded or factory grade or even a select standard sheathing. Anything is better than particle board for around a kitchen sink.

In the corner of a manufactured rolled formica counter top is a miter joint right across the counter, just itching to get all wet and start swelling up or collecting dirt. Formica sheets come readily available in 4x8 and 5x12 sheets. In most cases, for the normal kitchen cabinet formica countertop, no joints are required at all, if you do it yourself.

The easiest way to make a formica counter top is to make it in your workshop with formica splash attached to cover the shape of the bathroom or kitchen cabinets. This helps in trimming off the formica with a router, being able to get around the counter top without a wall in the way.

Take careful measurements including how square or out of square the wall is, especially if the cabinet counter top is an L-shaped one. Make a template of two intersecting 1x4s with a brace between them if you have to. There will be a bit of adjustment for a wonky wall, but that's about all. If the wall is out quite a bit, this should be allowed for.

The basic formica counter top is made the same way for all the profiles shown in the drawings above. The edges will be different depending on the hardwood and the profile chosen. There are two options for the top, overhang the front of the kitchen cabinets or build up the top to have it come out flush with the top of the bathroom or kitchen cabinets. Flush is the standard today, unless making a top for a '60s set of cabinets. In the '60s, we used to make the counter top an integral part of the cabinets. That is, the top would help hold the kitchen cabinets together. We used to nail the plywood to the top of the cabinets and then apply the formica in place. We could never trim right to the wall with a router because the base plate would hit the wall, leaving about 3" of the edge not trimmed. We finished it by hand using a coarse file, block plane, or any other tool we could make use of.

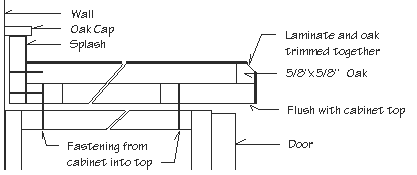

Diagram of the countertop with detail of the oak cap atop the splash with how to fasten the parts.For the formica top on the left, a piece of oak is attached to the plywood front to form an edge. Formica covers the plywood top and edge. The formica splash is made separately and attached by drilling holes through the plywood backing through the formica. The splash is then screwed into the plywood back, using silicone caulking to fill the voids. The formica is trimmed off by using a 45 degree bit with a ball bearing guide in a router, trimming the formica at the same time as it profiles the oak with a 45 degree bevel. Notice the oak cap on the formica splash. This adds a nice touch and eliminates the need to trim off the formica to the wall. This cap is installed after the splash top is in place and matches the oak on the edge. I keep the cap about 3/8" thick and overlap the formica splash about 1/8".

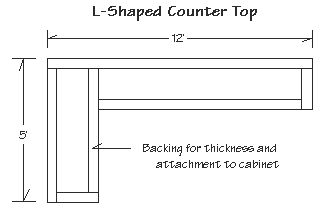

Diagram of the L shapped counter top with measurements.In the drawing to the right (plan view), I've shown an L-shaped kitchen cabinet formica counter top with its backing attached to the bottom, usually 3" wide. The 5'x12' size indicates the maximum size of a sheet of formica without having to go with a joint. Remember when ordering your formica, to include material for the splash and edging as well.

The formica is applied to the plywood top with contact cement. Use a solvent based (not latex) contact cement in an area with lots of fresh air. The adhesive is spread with the use of a short pile roller that you discard when finished. The cement on the edging and splash can be applied with a disposable natural bristle paint brush. Apply the contact cement as instructed on the can by applying to both surfaces and leave until dry. When the two surfaces touch they will stick together and you won't be able to pull them apart. To compensate for this we either use a kraft paper or thin strips of wood or extra formica to place the glued formica in the exact position we want above the glued plywood. Since the glue is dry it won't stick to the paper or sticks, just to itself or other glued surfaces. When the formica is in position, pull the paper or sticks out carefully and the formica will stick to the glued plywood and can't be moved. When all the sticks are removed the formica can be rolled onto the plywood eliminating any air bubbles. If the formica covers the edge, instead of an oak trim, the formica on the edge is glued first. The top of the edge is trimmed off a tiny bit above the plywood to ensure a good seam. The plywood is then glued and formica applied with the top overlapping the edge. After the formica is rolled, the trimming procedure with the router can be done. Use a tapered formica trimmer bit with guide wheel and adjust the bit in or out by raising or lowering the bit in the router. Practice on a scrap piece first. Be very careful and slow in getting the bit to the exact position without cutting too much of the formica and having too wide a seam. I usually just trim off the formica to feel a slight burr, then sand the burr off with 120 grit sandpaper on a wooden block. Once you have gone too deep with the router bit, you have spoiled the piece, so take it easy and slow.

If you need a joint in the formica counter top pick a place that is the least noticeable. I choose the center of the sink for one spot. With using the plywood for a base, I have found through experience that there is no problem joining the sheets of formica at the sink. This way there is only about a 2" or 3" joint noticeable on each side of the sink, after it is installed.

There are products out there that can be used to fill in bad joints or repairs. These products are expensive, but they do the trick. They match the number on the formica sheet. This product is called FormFill Mitre Joint Sealant & Laminate Repairer, made in Australia. It has a match to the colors of the following brands: Wilsonart, Formica, Arborite, Nevamar, Pionite. They have a US distributor who's website is: and can be found at cabinet supply stores which usually cater to tradesman and kitchen cabinet shops.

Now that you know the basics, experiment a little and be innovative. Mix and match the formica with oak or other species of wood. I've even painted my wooden cap on the splash to compliment the color of the formica top. If you want to share your ideas with other members of this site, send me a picture of your creation and Dan will put them up on the member's photos page of the website.
