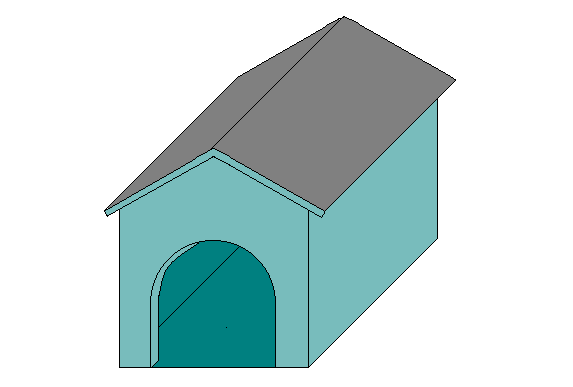

Doghouse for Small Dog Plans

This is a simple plan with instructions for the beginning woodworker to make a very simple dog house from plywood for a small dog. Instructions include the layout of a simple compass.



Dimensions:

18" wide x 36" long x 20" high


These wood working plans include:

Detailed drawings of: Front and Side Elevation, giving the dimensions of the unit; Detail of a construction compass.

The plans have a List of Materials, showing a breakdown of materials needed for the dog house.

The Instructions include directions to make a very simple dog house from plywood for a small dog. A cut list is included as well as instructions to layout a circle by making a simple compass. This is a simple plan with instructions for the beginning woodworker.

Do-it-yourself expert   For info on Dave, click here.


"Just wanted to drop a quick line saying "Thank you" for your website! My wife and I just bought a fixer-upper and the resources we have found in your site have been invaluable. We appreciate the service that you are offering. We have used information from your site to do many things. Next on our plate is a stairway. And thanks to you, we're not going to have to pay $4000 to have it done. Keep up the great work, and keep'em coming!" NL

See a complete listing of our plans and articles!


Member Login

Username:
Password:
Forgot your username
or password?
(click here)





N O T I C E PLEASE REALIZE THAT THE FOLLOWING DATA IS NOT NOT NOT THE COMPLETE ARTICLE. ALL DIAGRAMS HAVE BEEN FILTERED OUT. THE FULL DATA OF THIS ARTICLE (AND EVERY OTHER ARTICLE AND PLAN ON THE SITE) IS AVAILABLE IF YOU REGISTER AS A MEMBER TO GAIN ACCESS TO THE ENTIRE SITE, WHICH REALLY IS NOT EXPENSIVE.

List of Materials:

  • Sheet of 4'x8'x3/4" plywood
  • Nails
  • Glue
  • Exterior caulking

Tools Needed

  • Saw
  • Hammer
  • Tape
  • Pencil
  • Caulking gun

Instructions

Printing Instructions

Print these woodworking plans or click on the Print Version button at the top-right corner of this page or on the Print This link at the bottom of the page. This produces a white page with black lettering and the pictures of the plans. A small grey printer control window should also pop up. If the printer control does not pop up, click on the File menu at the top of the new window and select Print. After the printing you can close that new window.

This dog house plan is for a small to medium-sized dog. You can vary the dimensions to fit your pet quite easily. I have kept this project very simple to be completed by a beginner wood worker or with a child. By using 3/4" plywood, a frame of 2x2s or 2x4s is not necessary. Of course lighter plywood can be used, which would require a frame.

Rip the following pieces of plywood to the sizes indicated:

  • 2 pieces 19 1/2" x 20" for the front and back gables.
  • 2 pieces 15" x 36" for the sides.
  • 2 pieces 12" x 42" for the top. Notice that the long edge of each piece of the dog house is ripped at a 29 degree angle.
  • One piece 18" x 36" for the floor.

Layout the front and back gable to match the drawing. Come down 5" on the sides leaving the center raised 5". Make a compass with a stick of wood, so one end of the stick is 6" from a nail driven close to its other end and into the center of where you want the circle drawn. The nail is used as the stick's turning point, as shown in the drawing.

Cut out the entrance hole in the front of the dog house using a jig saw or band saw and assemble the pieces together. Start by nailing (with glue) the sides to the floor and then the front and back will overlap the sides. Nail and glue the top halves into position with a bead of caulking at the ridge joint. With a wet finger, wipe the excess caulking off the top of the roof.

Paint your dog house with a good quality exterior house paint, generously coating the edge grain of the exposed plywood.

Invite your pal into his or her new home.

Dave
