Sawhorse

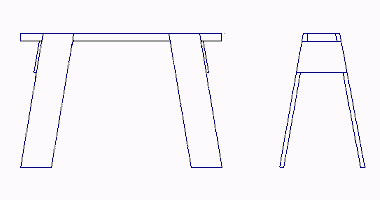

These are beginner wood working plans, but are for an advanced project because of the tricky angles that need to be cut. The best angle of a sawhorse's legs are 10°. That's 10° in two different directions remember. The 2x6 needs to have each side ripped at a 10° angle so the legs splay out.

The sawhorse legs also need to be cut at a 10° angle so their bottom ends line up with the ends of the 2x6.

Once you set your saw, make all the cuts with the same setting and it should all work out fine. Just be careful to keep the cuts parallel on the legs and non-parallel when ripping the 2x6.

At about 24 inches high, I find these sawhorses ideal for putting material on, cutting with a powersaw, etc. Also, the wide 2x6 top is perfect for standing on to reach an 8 to 10 foot high ceiling.

List of Materials:

  • 1 - 3' 2x6
  • 1 - 8' 1x8
  • 20 - #8x1 1/2" flat head wood screws
  • 2 - small pieces of plywood

Tools Needed

  • Table saw (preferred)
  • Power saw
  • Tape, square and pencil
  • Drill

Do-it-yourself expert   For info on Dave, click here.

"Just wanted to drop a quick line saying "Thank you" for your website! My wife and I just bought a fixer-upper and the resources we have found in your site have been invaluable. We appreciate the service that you are offering. We have used information from your site to do many things. Next on our plate is a stairway. And thanks to you, we're not going to have to pay $4000 to have it done. Keep up the great work, and keep'em coming!" NL

See a complete listing of our plans and articles!



Member Login

Username:
Password:
Forgot your username
or password?
(click here)


Become a Member
(click here for info)





N O T I C E PLEASE REALIZE THAT THE FOLLOWING DATA IS NOT NOT NOT THE COMPLETE ARTICLE. ALL DIAGRAMS HAVE BEEN FILTERED OUT. THE FULL DATA OF THIS ARTICLE (AND EVERY OTHER ARTICLE AND PLAN ON THE SITE) IS AVAILABLE IF YOU REGISTER AS A MEMBER TO GAIN ACCESS TO THE ENTIRE SITE, WHICH REALLY IS NOT EXPENSIVE.

Instructions

Set the blade on the tablesaw at 10°. Rip the edge off each side of the 2x6, keeping it as wide as possible. When cutting the sawhorse legs, make 2 rights and 2 lefts. The saw blade is set to 10° and the miter fence is set to 10°. Cut 2 legs the same then turn the board over and cut 2 more legs. This way if you are using smooth one side, all 4 legs will show the same surface outwards.

Layout the 2x6 with square marks 4 1/4" from each end. Drill the top of the sawhorse legs for the screws, 3 screws on each leg is good. Match the outside of the legs to these marks. Make sure that the legs are all uniform, that the tops are sloped the correct way to be flush on the top of the 2x6, that the legs are both splayed backwards, away from the ends of the 2x6 and that the bottom of the legs fit flat on the floor.

Now cut 2 pieces of plywood as end gussets. Start with a piece about 8"x10". Lay it up against the sawhorse legs and under the 2x6, scribe the outside of the legs on the plywood. Go to the table saw, the blade is set back to 0°, the miter fence is still set to 10°. Start at the top marks (under the 2x6) and cut both ways at 10° giving the shape of plywood shown in the drawing. Pre-drill and screw 4 screws on each end into the legs, be carefull to line up the screws with the sawhorse legs.

Enjoy your sawhorse.

Dave
